3-Way Ball Valves

3-Way Ball Valves

Home + Products + 3-Way Ball Valves

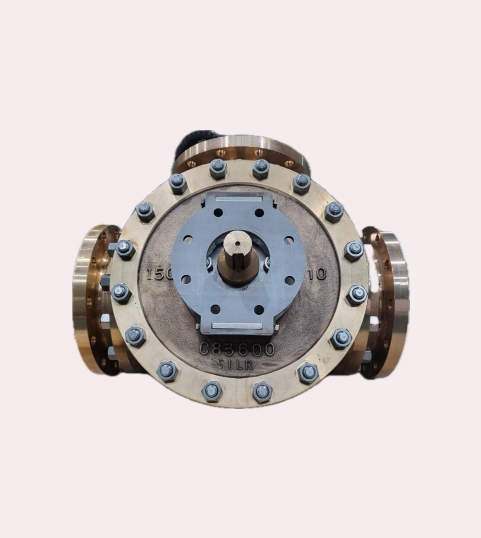

3-Way-Ball-Valves Gallery

Engineered for Multi-Directional Flow Solutions

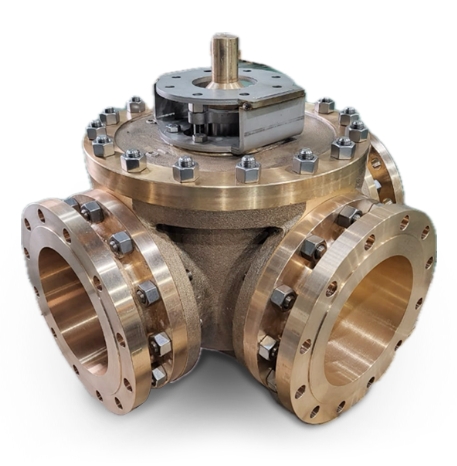

A 3-way trunnion ball valve has a port through it that can be rotated to direct flow in different paths. It is used to control the flow of fluids and gases. It consists of a ball with three ports. These valves allow mixing or flow switching of different media between various process equipment. Typically suited to applications in the refining or petrochemical industry sectors.

Two 3-way valve types offered: L-Port and T-Port

  • L-pattern: Flow enters through the bottom port and can be directed to either side port
  • T-pattern: Can combine flows from two sources or direct one flow to two destinations

OG Models Offered

3-way trunnion ball valve – L-Port (90° flow path)
3-way trunnion ball valve – T-Port (Three-way flow)

Benefits

  • Used to split or combine process flows, either liquids or gases
  • Reliable in high flow rate, high-pressure, high-temperature applications
  • Cost savings from space-saving design and reduced piping consumables used - valves, fittings, and pipe
  • Corrosive service compliant
  • Seawater service compliant
  • Fast switching between flow paths

Contact our engineering team today to discuss your specific valve requirements and discover how our advanced 3-Way Ball Valves solutions can enhance your asset’s safety, reliability, and performance.

Contact Us

Material Grades

Body
LTCS, CS, Stainless steel, Duplex, Super Duplex, Titanium, Nickel alloys

Design

API 6D, ASME B16.34, ISO 10423, ISO 17292, ISO 14313

Range

Size

DN15 (1/2”) TO DN250 (10”)

Connection Type

Flanged, Clamped hubs, Butt Weld End

Pressure Class

ANSI 150# – 2500#

Operation

Manual lever/gear, Pneumatic actuator, Electric actuator, Hydraulic actuator

Temperature
-46oC to 200oC

Industry Sectors

  • Petrochemical plants
  • Refineries
  • Seawater applications
  • Chemical processing
  • Pharmaceutical industry
  • Injection systems
  • HVAC industry
  • Pipeline distribution
  • Storage terminals
  • Paper and pulp
  • Power generation
  • Water treatment
